etcd 常见问题

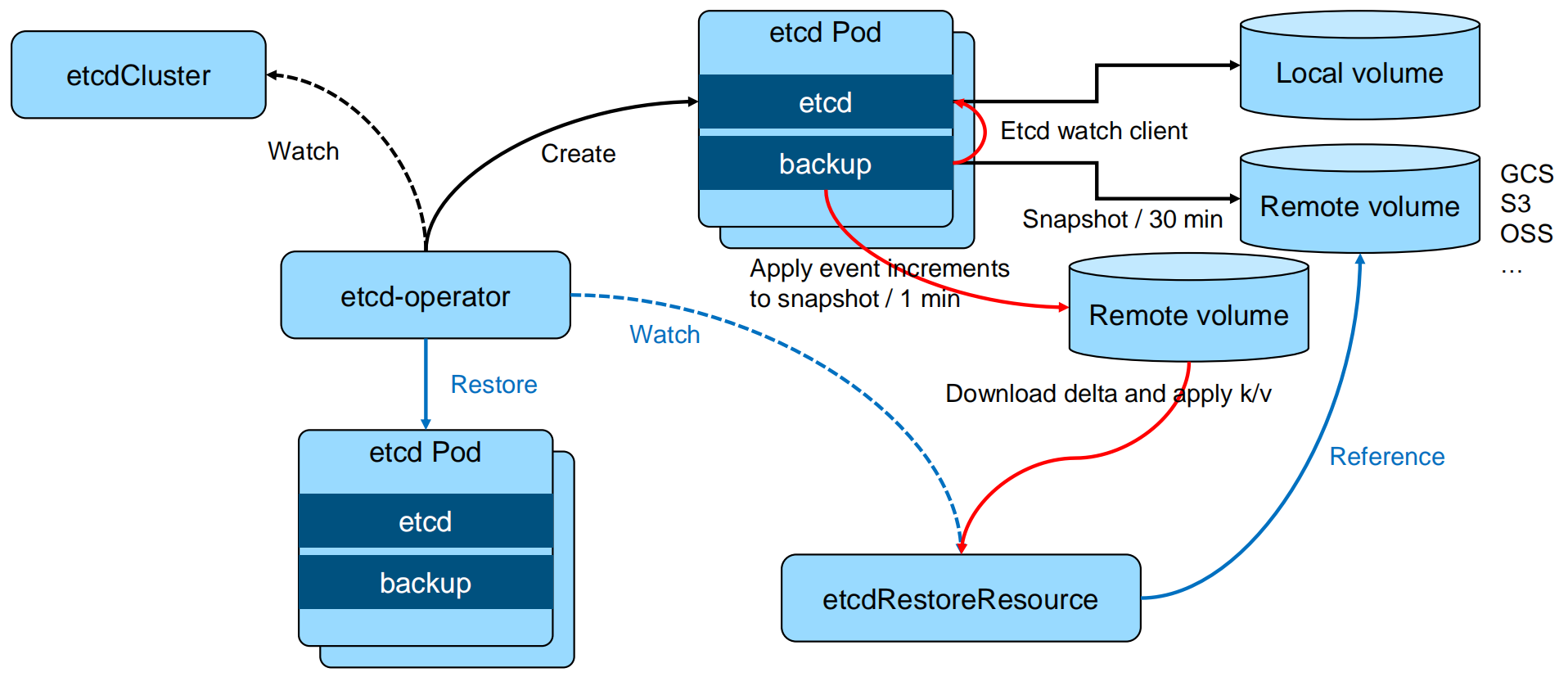

增强版 backup 方案

etcd 数据加密

• https://kubernetesjo/docs/tasks/administer-cluster/encrypt-data/

apiVersion: API Server.config.k8s.io/v1
kind: Encryptionconfiguration
resources:
    - resources:
        - secrets
        providers:
        - identity: {}
        - aesgcm:
            keys:
            - name: key1
              secret: c2VjcmV0IGlzIHNlY3VyZQ==
            - name: key2
              secret: dGhpcyBpcyBwYXNzd29yZA==
        - aescbc:
            keys:
            - name: key1
              secret: c2VjcmV0IGlzIHNlY3VyZQ==
        - secretbox:
            keys:
            - name: key1
              secret: YWJjZGVmZ2hpamtsbW5vcHFyc3R1dnd4eXoxMjM0NTY=
        - kms:
            name: myKmsPlugin
            endpoint: unix:///tmp/socketfile.sock
            cachesize: 100

Kubernetes 中数据分离

• 对于大规模集群/大量的事件会对etcd造成压力
• API server启动脚本中指定etcd servers集群

/usr/local/bin/kube-apiserver --etcd-servers=https://localhost:4001 --etcd- cafile=/etc/ssl/kubernetes/ca.crt--storage-backend=etcd3 --etcd-servers- overrides=/events#https://localhost:4002

查询 APIServer

返回某namespace中的所有Pod

GET /api/vl /namespaces/test/pods
200 OK
Content-Type: application/json
(
    "kind": "PodList",
    "apiVersion": "vl",
    "metadata": ("resourceversion":"!0245"},
    "items": [...]
}

从 12345 版本开始，监听所有对象变化

GET /api/vl /namespaces/test/pods?watch=1&resourceVersion=10245
200 OK
Transfer-Encoding: chunked
Content-Type: application/json
{
"type": "ADDED",
"object": {"kind": "Pod", "apiVersion": "vl", "metadata": ("resourceversion": "10596",...}
)
(
"type": "MODIFIED",
"object": {"kind": "Pod", "apiVersion": "vl", "metadata": {"resourceVersion": "11020",...),...)
}

分页查询

GET /api/v1/pods?limit=500
---
200 OK
Content-Type: application/json
{
    "kind": "PodList,
    "apiVersion": "vl",
    "metadata": {
        "resourceVersion":"10245",
        "continue": "HENCODED_CONTINUE_TOKEN",
        },
    "items": [...] // returns pods 1-500
}

GET /api/v1/pods?limit=500&contnue=ENCODED_CONTINUE_TOKEN
---
200 OK
Content-Type: application/json
{
    "kind": "PodList",
    "apiVersion": "v1",
    "metadata": {
        "resourceVersionn":"10245",
        "continue": "ENCODED_CONTINUE_TOKEN_2,
        },
    "items": [...] // returns pods 501-1000
}

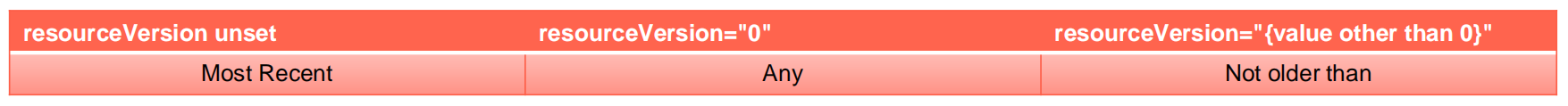

Resourceversion

• 单个对象的 resourceversion
  • 对象的最后修改 resourceversion
• List 对象的 resourceversion
  • 生成 list response 时的 resourceversion
• List 行为
  • List 对象时,如果不加 resourceversion，意味着需要 Most Recent 数据，请求会击穿 APIServer 缓存，直接发送至 etcd
  • APIServer 通过 Label 过滤对象查询时，过滤动作是在 APIServer 端，APIServer 需要向 etcd 发起全量查询请求

遭遇到的陷阱

频繁的 leader election
etcd 分裂
etcd 不响应
与 apiserver 之间的链路阻塞
磁盘暴涨

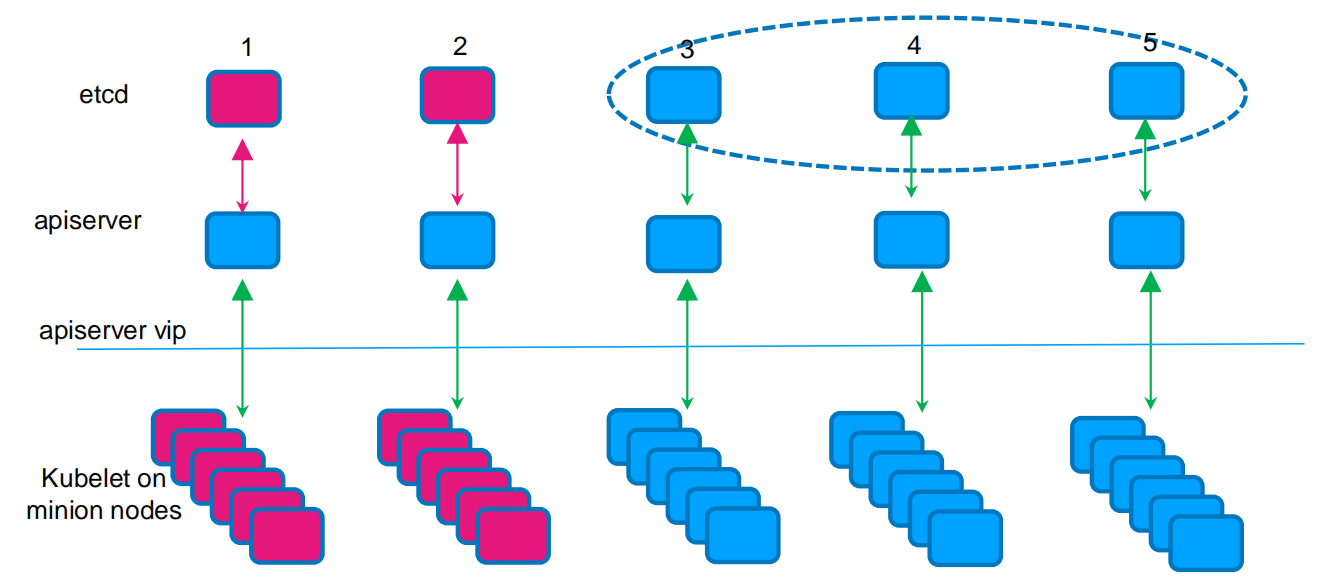

少数 etcd 成员 Down

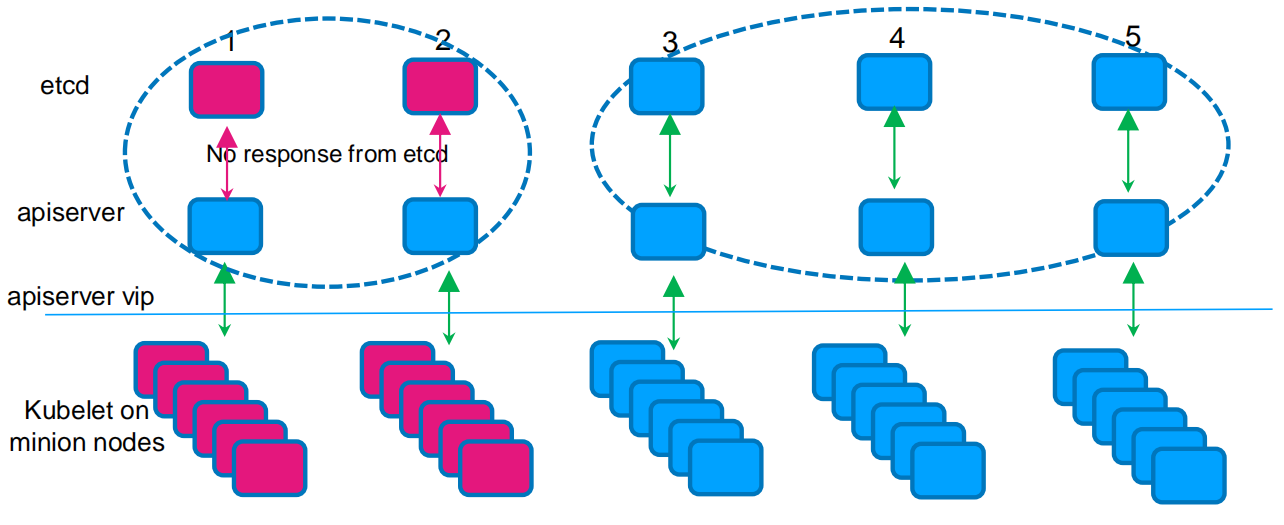

Master 节点出现网络分区

Case:网络分区出现
Group#1：master-1，master-2
Group#2：master-3，master-4，master-5

课后练习 5.2

在 Kubernetes 集群中创建一个高可用的 etcd 集群

参考资料

B树和B+树: https://segmentfault.com/a/1190000020416577
Etcd流程分析: https://www.jianshu.com/p/2614fdb5d1c3
